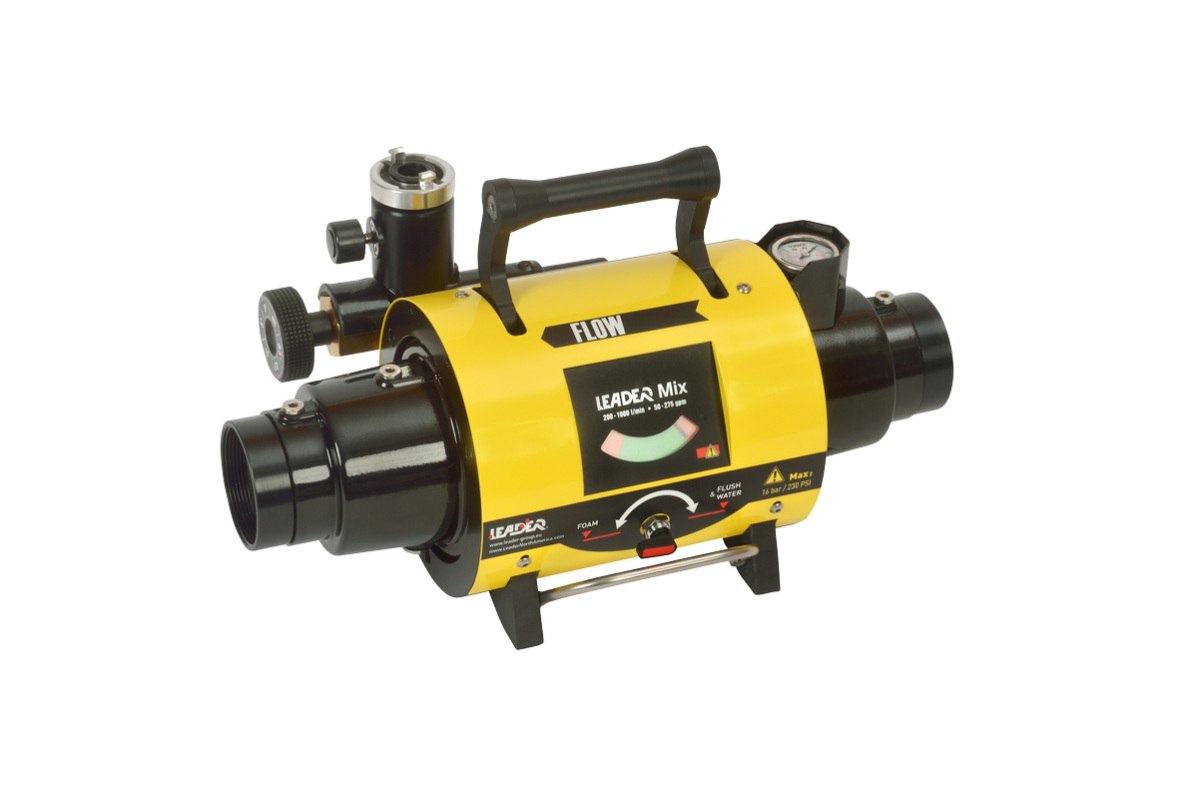

AUTOMATIC SYSTEM FOR PROPORTIONING ALL TYPES OF FOAM CONCENTRATES FROM 0.3% TO 6%:
- Ideal compromise between conventional venturi inductors and traditional automatic systems because of the wide range of flow rates and injection ratios available
- Autonomous: Does not require power supply
- Reduced maintenance due to the simple mechanical design
LARGE RANGE OF USE:
- Replaces 3 conventional inductors (200, 400 and 800)
- Wide range of flow rates from 200 to 1050 l/min
- Wide operating pressure range from 5 to 16 bar
- Metering accuracy meets EN16712 standard
REDUCED CONSUMPTION OF INJECTED FOAM CONCENTRATE
- Accurate metering of foam concentrates from 0.3% to 6%
- Adapts itself automatically to the selected flow rate at the nozzle
2 VERSIONS AVAILABLE:
- Fire vehicles or fixed foam extinguishing systems (with optional remote control panel)
- Ground applications (hose lay)
ADDITIONAL FIELD BENEFITS…
- Water position (“no foam concentrate injection” position): Below 800 l/min, it generates less pressure losses in the water position than traditional venturi injectors: only 0.8 bar pressure loss at 500 l/min
- Inlet pressure gauge
- Simple push button flush valve
CREATE SUCTION EVERY TIME FOAM IS DESIRED
- Instant injection of foam concentrate even during Pulsing
- Works even below 10 bar
- Independent of flow rate variation
