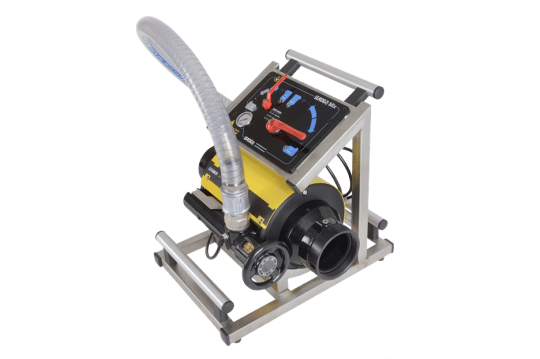

The foam inductor proportioner LEADER MIX 2000 is a 100% mechanical foam eductor it works without electronics. LEADER MIX 2000 adapts itself directly to nozzle or monitor flow variation.
Adapted to the highest flow rates, the LEADER MIX 2000 proportioner automatically adapts to variations in the flow rates of the fire hoses (300-2000l/min) with a constant induction of foam concentrate. Used in parallel, several LEADERMIX 2000 can supply up to 4000 l/min, 6000 l/min of premix.
Whatever the viscosity of the firefighting foam concentrate, the foam dosing system LEADERMIX 2000 aspirates the foam concentrate with an accurate induction rate from 0,3% to 6%._x000D_ The 1% and 3%V positions are specially calibrated for viscous foam concentrate.
Thanks to its small size, the foam inductor LEADER MIX 2000 can be easily integrated in fire vehicules and fixed foam installations. A remote control panel allows to control the different intervention positions. In its “portable” version, it can also be easily moved and used on the ground.
GENERAL CHARACTERISTICS
- FLOW RANGE
- 300 to 2000 l/min
- REGULATING PRESSURE
- 5 to 16 bar
- DOSAGE
- 0.3%, 0.5%, 1%, 3%, 3%V, 6%
- INLET / OUTLET
- 4” BSP female
- STORAGE TEMPERATURE
- -20°C to +60°C_x000D_
- OPERATING TEMPERATURE
- 0°C to +50°C_x000D_
- PRESSURE LOSS
- 35% to 40%.
- BYPASS TO REDUCE PRESSURE LOSSES
- Yes
- INLET PRESSURE GAUGE
- yes, on the control panel
- WEIGHT
- 27,5 kg for the “Fixed” version
34kg for the “Transportable” version - DIMENSIONS W X H X D
- 520 x 265 x 330 mm for the “Fixed” version
520 x 510 x 515 for the “Transportable” version - CARRYING HANDLE
- no
- EXTRACTION TUBE
- No for the “Fixed” version
Flexible equipped with a plunger rod – W:2.5m / 1,5” Storz C for the “Transportable” version - FOAM SUPPLY
- 1,5” BSP F for the “Fixed” version> Storz C quick coupling for the “Transportable” version
- CHECK VALVE ON THE FOAM INLET
- Yes
- PURGE BUTTON
- Yes on the control panel
