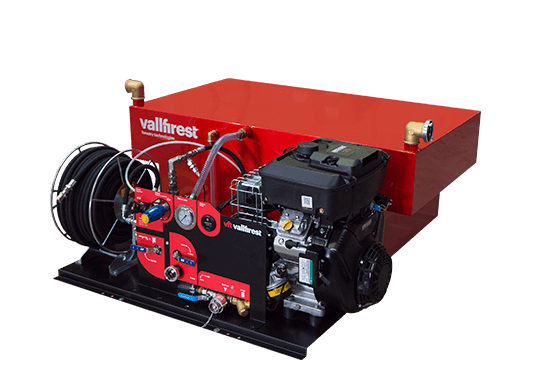

High Pressure Skid Unit with Piston Pump

Rapid intervention skid unit designed for pickup vehicles and trailers, 100% customizable equipped with piston pumps up to 100 bars with a maximum flow of up to 42 liters per minute.

Features:
  • High-quality components and replacement part availability.
  • Great availability of spare parts.
  • Resistant tanks made of stainless steel.
  • The best quality/price ratio.
  • 2-year warranty
Available configurations
Engine Fuel Battery and electric
start
Power Pump Max Pressure* Max Flow*
B&S XR2100 Gasoline YES 13,5 HP XWL 42.10 N 100 bar 42 l/min
B&S XR2100 Gasoline YES 13,5 HP XW 21.20 N 200 bar 21 l/min

*These values are at direct pump outlet.

Water tank

Capacities: 120 – 1,000 liters.

Multiple materials to choose from:

  • Stainless steel
  • Polyethylene
  • Flexible canvas

Fast Attack Winder: Winder assembled on the main structure. Includes 50 m hose. DN10 or DN12 (depending on the motor pump model) made of rubber up to 330 bar. The
winder comes assembled with connection to the water pump.

Attack Lance: long-range, high-pressure lance. Maximum flow: 45 l / min. Maximum pressure: 280 bar.

Foam system with lance: Foam PVB AV785 lance. Maximum flow: 50 l / min.

Suction Hose: translucent yellow spiral hose with a length of 5 m. Includes non-return foot valve and filter.
