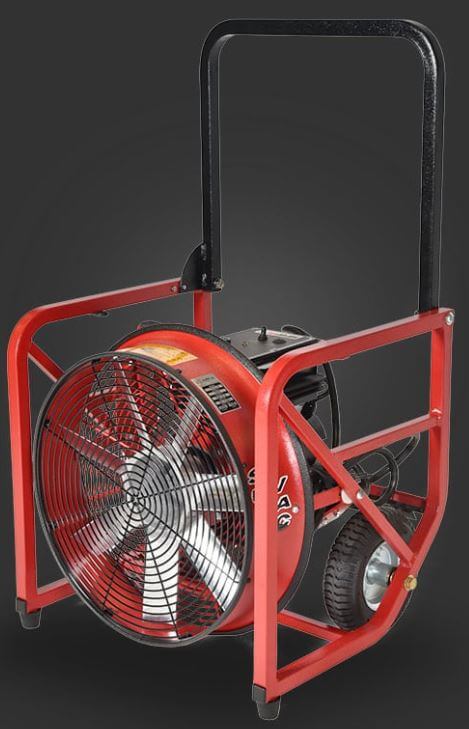

The 7 Series electric fan has proven itself for many decades as a fire department favorite, featuring a durable steel-frame, roll-cage design with 4-position tilt frame with lever.
- Available sizes: 16”, 18”, 20”, 24”
- Available motors: Single-speed,
variable-speed, hazardous location
Full Roll-Cage Frame:
Protects key components
4-Position Tilt Frame with Lever:
Provides -10°, 0°, 10°, 20°
Fold-Down Ergonomic Handle:
Folds down into frame for compact storage;
features full-width handle for easy grip with heavy-duty gloves
Flat-Proof Rubber Tires:
Eliminates flat tires; rolls up stairs/curbs easily
Single-Piece Cast Aluminum Blade:
Holds up better than plastic in high heat
Precision-Spun Steel Shroud:
Provides durability with max airflow
StreamShaper Guard:
Classic design for maximum airflow; StreamShaper Guard optional
See the difference >
Optional Chevron Decal:
Improves visibility of fan by adding a reflective Chevron Decal, available in NFPA 1901 red/yellow and red/white
| 7-SERIES | WEIGHT | FAN SIZE HxWxD | MOTOR | RPM | START | RUN | SETBACK | ANGLE | OUTPUT | |
|---|---|---|---|---|---|---|---|---|---|---|
| 16″ Blades |
716-E2 | 68 lbs 31 kg |
20″ x 20.5″ x 16″ 510 x 520 x 410 mm |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 5,890 cfm 10,007 cmh |
| 716-EXP | 78 lbs 35.5 kg |
20″ x 20.5″ x 16″ 510 x 520 x 410 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 5,890 cfm 10,007cmh |
|
| 716-EVS | 72 lbs 33 kg |
20″ x 20.5″ x 16″ 510 x 520 x 410 mm |
RAE, TEAO variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,500 | 2,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 9,950 cfm 16,900cmh |
|
| 18″ Blades |
718-E2 | 82 lbs 37 kg |
22″ x 23.5″ x 19.5″ 560 x 600 x 500 mm |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 6,378 cfm 10,836cmh |
| 718-EXP | 92 lbs 42 kg |
22″ x 23.5″ x 19.5″ 560 x 600 x 500 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 6,378 cfm 10,836cmh |
|
| 718-EVS | 86 lbs 39 kg |
22″ x 23.5″ x 19.5″ 560 x 600 x 500 mm |
RAE, TEAO variable speed, 1 HP, 50/60Hz, 115/230V AC |
2,400 | 2,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 10,744 cfm 18,254 cmh |
|
| 20″ Blades |
720-E2 | 88 lbs 40 kg |
25.5″ x 26″ x 19.5″ 650 x 660 x 500 mm |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 9,007 cfm 15,302 cmh |
| 720-EXP | 98 lbs 45 kg |
25.5″ x 26″ x 19.5″ 650 x 660 x 500 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 9,007 cfm 15,302 cmh |
|
| 720-EVS | 92 lbs 42 kg |
25.5″ x 26″ x 19.5″ 650 x 660 x 500 mm |
RAE, TEAO variable speed, 1.5 HP, 50/60Hz, 115/230V AC |
2,400 | 2,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 13,788 cfm 23,426 cmh |
|
| 24″ Blades |
724-E2 | 104 lbs 47.5 kg |
28″ x 29.5″ x 21″ 710 x 750 x 535 mm |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 13,320 cfm 22,630 cmh |
| 724-EXP | 114 lbs 52 kg |
28″ x 29.5″ x 21″ 710 x 750 x 535 mm |
Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,750 | 4,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 13,320 cfm 22,630 cmh |
|
| 724-EVS | 108 lbs 49 kg |
28″ x 29.5″ x 21″ 710 x 750 x 535 mm |
RAE, TEAO variable speed, 1.5 HP, 50/60Hz, 115/230V AC |
2,400 | 2,000 w 15-amp circuit |
1,500 w | 6 ft 1.8 m |
18º | 16,370 cfm 27,815 cmh |
|
