THE TRUSTED LINEUP OF SMOKE EJECTORS
THE GO-TO SMOKE VENTILATION FAN AMONG FIREFIGHTERS
The Super Vac smoke ejector provides a versatile ventilation option. The box-shaped fan pulls smoke from a structure using negative pressure, working best when leveraging natural airflow. These smoke ventilation fans also can be flipped around for positive pressure tactics. Super Vac’s smoke ejector features a one-piece cast aluminum blade that creates a spiral of air to eject smoke and fumes away from the building. This aluminum blade design holds up better than plastic in high heat.
| HYDRAULIC | WEIGHT | FAN SIZE HxWxD | POWER | CONSUMPTION | OUTPUT | |
|---|---|---|---|---|---|---|
| 12″ BLADES |

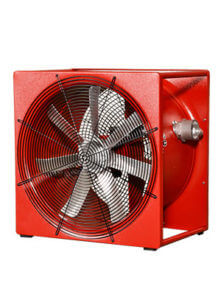

P124WT | 50 lbs 25 kg |
15.5″ x 15″ x 13″ 395 x 380 x330 mm |
5.5 HP Water Turbine 100 – 250 PSI |
65 gpm | 4,300 cfm 7,305 cmh |
| 16″ BLADES |
P164WT | 57 lbs 34 kg |
19.25″ x 18.75″ x 13″ 490 x 480 x 330 mm |
5.5 HP Water Turbine 100 – 250 PSI |
65 gpm | 9,950 cfm 16,905 cmh |
| 20″ BLADES |
P200WT | 88 lbs 40 kg |
25.5″ x 24.75″ x 16.25″ 650 x 630 x 415 mm |
5.5 HP Water Turbine 100 – 250 PSI |
65 gpm | 10,800 cfm 18,350 cmh |
| 24″ BLADES |
P244WT | 123 lbs 56 kg |
28.5″ x 28″ x 18.75″ 725 x 710 x 480 mm |
5.5 HP Water Turbine 100 – 250 PSI |
65 gpm | 14,200 cfm 24,125 cmh |
