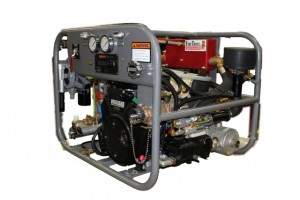

The 70-35-GP is a slide-in, portable compressed air foam system designed and constructed to discharge water, foam solution or compressed air foam. The system simultaneously delivers a minimum of 70 GPM of water at 100 PSIg (265 L/min. @ 6.9 bar) and 35 CFM of air at 100 PSIg (0.9 m3/min @ 6.9 bar) and compressed air foam discharge pressure up to 130 PSIg (9 bar).
Specifications
- Briggs and Stratton Vanguard two-cylinder, air-cooled, four-cycle engine (Two-Year Engine Warranty)
- 23 HP (17.2 kW)
- Fire Troll 1.5 Foam Proportioner standard
| 70-35 FLOW | |
|---|---|
| GPM | 70 |
| l/min | 265 |
| l/sec | 4.4 |
| SCFM | 35 |
| M3/min | .9 |
| 70-35 PRESSURE | |||
|---|---|---|---|
| PSI | Bar | kPa | MPa |
| 100 | 6.9 | 690 | .69 |
